Product Overview

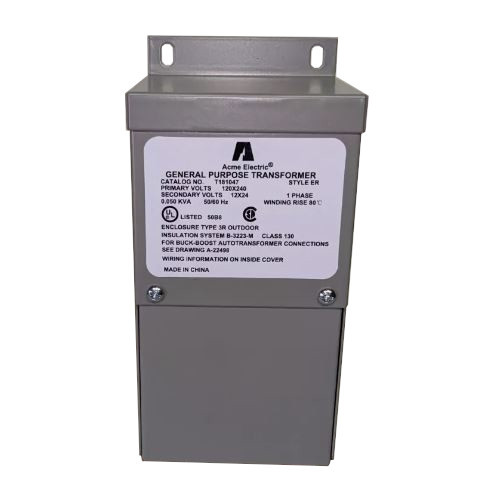

Hubbell Acme Buck Boost Transformers
Input voltage 110v AC or 220v AC
Output voltage 12v AC or 24v AC
See wiring diagram
Selecting the proper transformer.
Make sure the transformer “or transformers” are rated at least 20% greater capacity than the total wattage of the LED’s they will power.
wiring for 110v to 24v output
110v Wiring In
Connect H1 & H3 together
Connect H2 & H4 together
24v Wiring Out
Connect X2 & X3 together
Output X1 & X4
Importaint:
Always check output voltage before connecting lights.
Any mistakes at this point could be costly.
